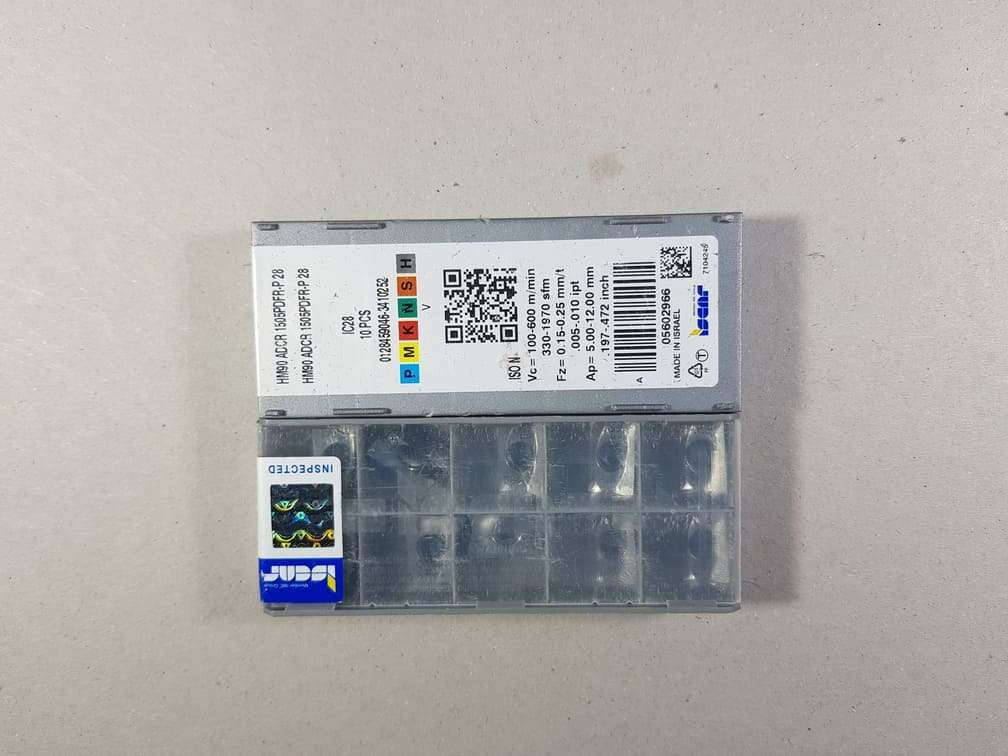

Iscar Hm90 Adcr 1505Pdfr -p 28 Ic28 Elmas Uç [alimünyum]
Kategori
Marka
Stok Kodu
AT081
Stok Miktarı
64
Havale
11,32 EUR
(%5,00 havale indirimi)
*1,08 EUR den başlayan taksitlerle!
14,19 EUR + KDV
%30
9,93 EUR + KDV
Kargo Bedava
50€ ve üzeri alışverişlerde kargo bedava!
Bütün ürünlerimiz orijinaldir. Öğle 2'den önce verilen siparişler aynı gün kargolanır. TANE FİYATIDIR!
| pplicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 16.3 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Depth of Cut Maximum (APMX) | 12 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 9.55 mm | Cutting Edge Effective Length (LE) | 15.3 mm |
| Insert Thickness (S) | 6.9 mm | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC28 | Unit | M |
| Shape | 85° Parallelogram |
